SY1007-1-26/7

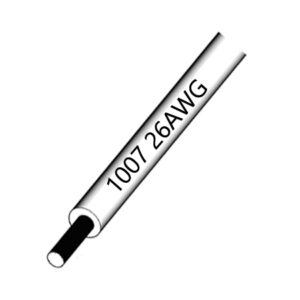

PVC Hook-up Wire
Description
Description
| Shoayer Part Number | SY1007-1-26/7 | ||
| Rated Voltage | 300V | ||
| Rated Temperature | ﹣30℃～﹢80℃ | ||
| Conductor | Material | Tinner plated copper | |
| AWG | 26AWG | ||
| Composition | No.*AWG | 7/34AWG | |
| No.* mm | 7/0.16mm | ||
| Diameter | 0.49mm | ||
| Insulation | Material | PVC (Polyvinyl chloride) | |
| Thickness | 0.38mm | ||
| Outer Diameter (mm) |
1.25±0.1mm | ||
| Color | Optional | ||
| Package | 610m/roll | ||
| Estimate weight | 2.83km/kg | ||
| Rated current | 1.27A | ||
| Max conductor resistance DC 20℃ | 128Ω/km | ||
