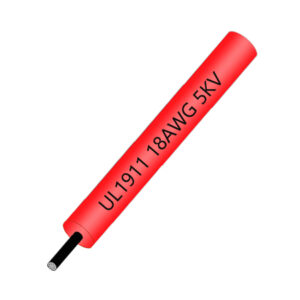

SY1911-3-16/19-5KV
1911 5KV 250℃ High Voltage Wire
Description
Description
| Shoayer Part Number | SY1911-3-16/19-5KV | ||
| Rated Voltage | 5KV | ||
| Rated Temperature | ﹣60℃～﹢250℃ | ||
| Conductor | Material | Nickel plated copper | |
| AWG | 16AWG | ||
| Composition(No.* mm) | 19/0.30mm | ||
| Diameter | 1.50mm | ||
| Insulation | Material | PFA (Perfluoroalkoxy) | |
| Thickness | 0.50mm | ||
| Outer Diameter (mm) | 2.50±0.1mm | ||
| Color | Optional | ||
| Package | 305m/roll | ||
| Estimate weight | 20km/kg | ||
| Max conductor resistance DC 20℃ | 16.2Ω/km | ||
