SY3132-1-18/19

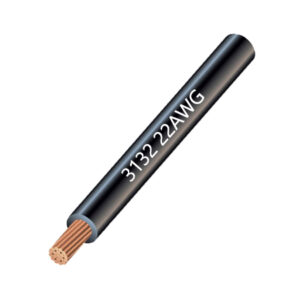

3132 Silicone 300V 150℃ High Temperature Wire
Description
Description
| Shoayer Part Number | SY3132-1-18/19 | ||
| Rated Voltage | 300V | ||
| Rated Temperature | ﹣60℃～﹢150℃ | ||
| Conductor | Material | Tinner plated copper | |
| AWG | 18AWG | ||
| Composition | No.*AWG | 19/30AWG | |
| No.* mm | 19/0.23mm | ||
| Diameter | 1.16mm | ||
| Insulation | Material | Silicone rubber | |
| Thickness | 0.38mm | ||
| Outer Diameter (mm) |
1.92±0.1mm | ||
| Color | Optional | ||
| Package | 305m/roll | ||
| Estimate weight | 11km/kg | ||
| Rated current | 7.2A | ||
| Max conductor resistance DC 20℃ | 23.2Ω/km | ||
