SY3529-1-20/7

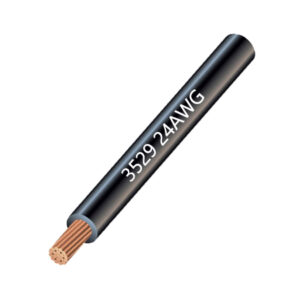

3529 Silicone 600V 200℃ High Temperature Wire
Description
Description
| Shoayer Part Number | SY3529-1-20/7 | ||
| Rated Voltage | 300V | ||
| Rated Temperature | ﹣60℃～﹢200℃ | ||
| Conductor | Material | Tinner plated copper | |
| AWG | 20AWG | ||
| Composition | No.*AWG | 7/28AWG | |
| No.* mm | 7/0.30mm | ||
| Diameter | 0.92mm | ||
| Insulation | Material | Silicone rubber | |
| Thickness | 0.76mm | ||
| Outer Diameter (mm) |
2.44±0.1mm | ||
| Color | Optional | ||
| Package | 610m/roll | ||
| Estimate weight | 11km/kg | ||
| Rated current | 4.6A | ||
| Max conductor resistance DC 20℃ | 35.2Ω/km | ||
