SY3529-1-22/19

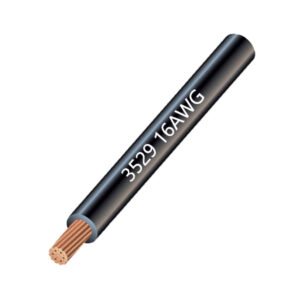

3529 Silicone 600V 200℃ High Temperature Wire
Description
Description
| Shoayer Part Number | SY3529-1-22/19 | ||
| Rated Voltage | 300V | ||
| Rated Temperature | ﹣60℃～﹢200℃ | ||
| Conductor | Material | Tinner plated copper | |
| AWG | 22AWG | ||
| Composition | No.*AWG | 19/34AWG | |
| No.* mm | 19/0.16mm | ||
| Diameter | 0.80mm | ||
| Insulation | Material | Silicone rubber | |
| Thickness | 0.76mm | ||
| Outer Diameter (mm) |
2.27±0.1mm | ||
| Color | Optional | ||
| Package | 610m/roll | ||
| Estimate weight | 8.6km/kg | ||
| Rated current | 2.8A | ||
| Max conductor resistance DC 20℃ | 59.4Ω/km | ||
