SY3530-1-24/19

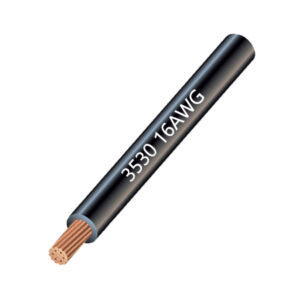

3530 Silicone 600V 200℃ High Temperature Wire
Description
Description
| Shoayer Part Number | SY3530-1-24/19 | ||
| Rated Voltage | 300V | ||
| Rated Temperature | ﹣60℃～﹢200℃ | ||
| Conductor | Material | Tinner plated copper | |
| AWG | 24AWG | ||
| Composition | No.*AWG | 19/36AWG | |
| No.* mm | 19/0.127mm | ||
| Diameter | 0.61mm | ||
| Insulation | Material | Silicone rubber | |
| Thickness | 0.76mm | ||
| Outer Diameter (mm) |
2.12±0.1mm | ||
| Color | Optional | ||
| Package | 610m/roll | ||
| Estimate weight | 6.8km/kg | ||
| Rated current | 1.8A | ||
| Max conductor resistance DC 20℃ | 98.3Ω/km | ||
