SYBS3G210/B-2-22/19

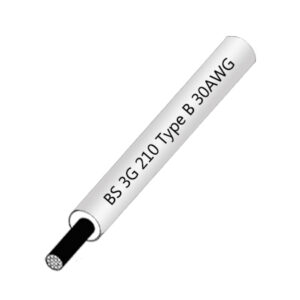

600V 190℃ BS 3G 210 Type B PTFE wire

Category: TYPE B

Description

Shoayer Part Number		SYBS3G210/B-2-22/19
Rated Voltage		600V
Rated Temperature		﹣65℃～﹢190℃
Conductor	Material	Silver plated copper
	AWG	22AWG
	Composition (No.* mm)	19/0.15mm
	Diameter	0.75mm
Insulation		PTFE (Poly tetra fluoro ethylene )
Outer Diameter (mm)	Min.	1.15±0.05mm
	Max.	1.35±0.05mm
Color		Optional
Max conductor resistance DC 20℃		58.6Ω/km
