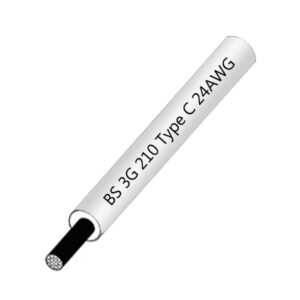

SYBS3G210/C-2-16/19

1000V 190℃ BS 3G 210 Type C PTFE wire

Category: TYPE C

Description

Shoayer Part Number		SYBS3G210/C-2-16/19
Rated Voltage		1000V
Rated Temperature		﹣65℃～﹢190℃
Conductor	Material	Silver plated copper
	AWG	16AWG
	Composition (No.* mm)	19/0.30mm
	Diameter	1.50mm
Insulation		PTFE (Poly tetra fluoro ethylene )
Outer Diameter (mm)	Min.	2.16±0.1mm
	Max.	2.46±0.1mm
Color		Optional
Max conductor resistance DC 20℃		14.3Ω/km
