SYBS3G210/C-2-22/19

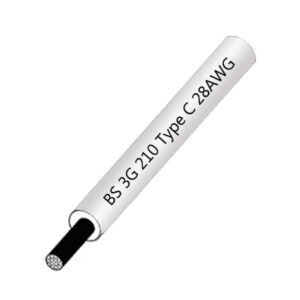

1000V 190℃ BS 3G 210 Type C PTFE wire

Category: TYPE C

Description

Shoayer Part Number		SYBS3G210/C-2-22/19
Rated Voltage		1000V
Rated Temperature		﹣65℃～﹢190℃
Conductor	Material	Silver plated copper
	AWG	22AWG
	Composition (No.* mm)	19/0.15mm
	Diameter	0.75mm
Insulation		PTFE (Poly tetra fluoro ethylene )
Outer Diameter (mm)	Min.	1.41±0.05mm
	Max.	1.67±0.05mm
Color		Optional
Max conductor resistance DC 20℃		58.6Ω/km
