SYBS3G210/C-2-30/1

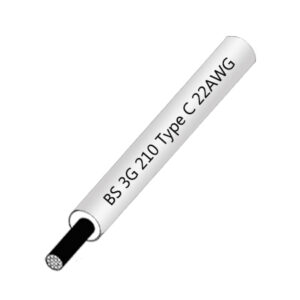

1000V 190℃ BS 3G 210 Type C PTFE wire

Category: TYPE C

Description

Shoayer Part Number		SYBS3G210/C-2-30/1
Rated Voltage		1000V
Rated Temperature		﹣65℃～﹢190℃
Conductor	Material	Silver plated copper
	AWG	32AWG
	Composition (No.* mm)	1/0.25mm
	Diameter	0.25mm
Insulation		PTFE (Poly tetra fluoro ethylene )
Outer Diameter (mm)	Min.	0.91±0.05mm
	Max.	1.07±0.05mm
Color		Optional
Max conductor resistance DC 20℃		377Ω/km
