SYBS3G210/NC-3-26/7

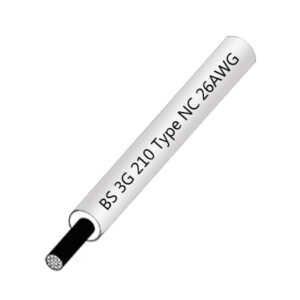

1000V 260℃ BS 3G 210 Type NC PTFE wire

Category: TYPE NC

Description

Shoayer Part Number		SYBS3G210/NC-3-26/7
Rated Voltage		1000V
Rated Temperature		﹣65℃～﹢260℃
Conductor	Material	Nickel plated copper
	AWG	26AWG
	Composition (No.* mm)	7/0.15mm
	Diameter	0.45mm
Insulation		PTFE (Poly tetra fluoro ethylene )
Outer Diameter (mm)	Min.	1.11±0.05mm
	Max.	1.37±0.05mm
Color		Optional
Max conductor resistance DC 20℃		166Ω/km
