SYEVP-0-16.0/511-X

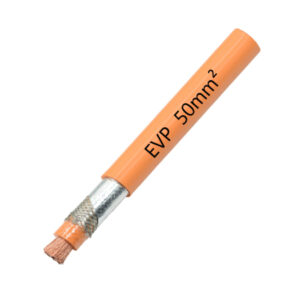

New energy vehicle shielded cable
Description
Description
| Shoayer Part Number | SYEVP-0-16.0/511-X | ||
| Rated Voltage | 1500V | ||
| Rated Temperature | ﹣40℃～﹢150℃ | ||
| Conductor | Material | Annealed copper | |
| SQMM | 16mm² | ||
| Composition | No.* AWG | 511/32AWG | |
| No.* mm | 511/0.20mm | ||
| Diameter | 5.60mm | ||
| Insulation | Material | XLPE | |
| Thickness | 1.10mm | ||
| Shieded | Material | Tinner plated copper | |
| Composition | 16/4/0.12 | ||
| Density | ≥85% | ||
| Tape | Al-mylar | ||
| Jacket | Material | XLPE | |
| Thickness | 1.00mm | ||
| Outer Diameter (mm) |
10.80±0.5mm | ||
| Color | Orange, Red, Black | ||
| Package | 100m/Roll | ||
| Rated current | 144.41A | ||
| Max conductor resistance DC 20℃ | 1.12Ω/km | ||
