SYFF46-2-0.05/1

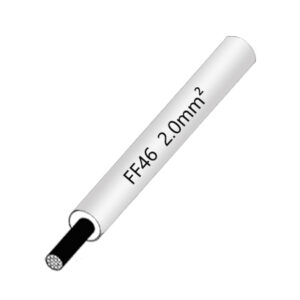

FF46-2 600V 200℃ Silver Copper Teflon Wire

Category: FF46

Description

Shoayer Part Number		SYFF46-2-0.05/1
Rated Voltage		600V
Rated Temperature		﹣80℃～﹢200℃
Conductor	Material	Silver plated copper
	SQMM	0.035mm²
	Composition (No.* mm)	1/0.254mm
	Diameter	0.254mm
Insulation	Material	FEP (Fluorinated ethylene propylene)
	Thickness	0.15mm
Outer Diameter (mm)		0.554±0.05mm
Color		Optional
Package		610m/Roll
Estimate weight		0.89km/kg
Max conductor resistance DC 20℃		355.41Ω/km
