SYGN50001-0-95/760

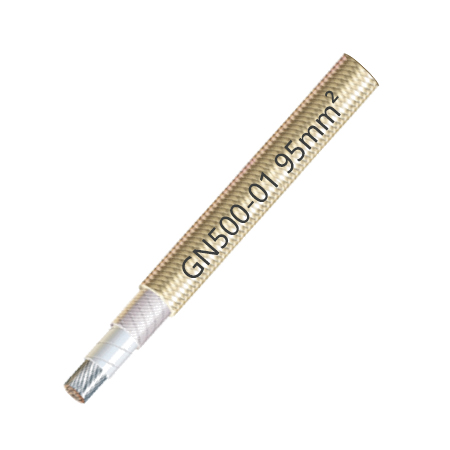

GN500-01 300V 350℃ Fire Resistant Wire
Description
Description
| Shoayer Part Number | SYGN50001-0-95/760 | |
| Rated Voltage | 300/500V | |
| Rated Temperature | ﹣60℃～﹢350℃ | |
| Conductor | Material | Bare copper |
| SQMM | 95mm² | |
| Composition (No.* mm) | 760/0.40mm | |
| Diameter | 12.70mm | |
| Insulation | Material | Fluorine mica tape + Fiberglass braid |
| Thickness | 1.20mm | |
| Outer Diameter(mm) | 17.40±1.0mm | |
| Color | Optional | |
| Package | 100m/roll | |
| Max conductor resistance DC 20℃ | 0.19Ω/km | |
