SYGN50002-3-70/988

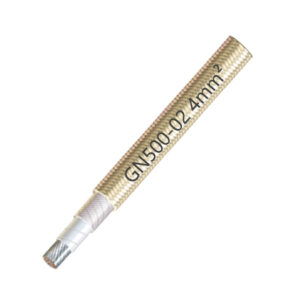

GN500-02 300V 450℃ Fire Resistant Wire
Description
Description
| Shoayer Part Number | SYGN50002-3-70/988 | |
| Rated Voltage | 300/500V | |
| Rated Temperature | ﹣60℃～﹢450℃ | |
| Conductor | Material | Nickel plated copper |
| SQMM | 70mm² | |
| Composition (No.* mm) | 988/0.30mm | |
| Diameter | 10.90mm | |
| Insulation | Material | Fluorine mica tape + Fiberglass braid |
| Thickness | 1.20mm | |
| Outer Diameter(mm) | 15.40±1.0mm | |
| Color | Optional | |
| Package | 100m/roll | |
| Max conductor resistance DC 20℃ | 0.26Ω/km | |
