SYM16878/3-1-16/19

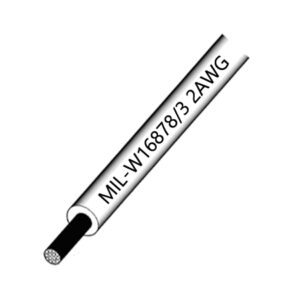

Military M16878/3 PVC 3000V 105℃ Wire
Description
Description
| Shoayer Part Number | SYM16878/3-1-16/19 | ||
| Rated Voltage | 3KV | ||
| Rated Temperature | ﹣55℃～﹢105℃ | ||
| Conductor | Material | Tinner plated copper | |
| AWG | 16AWG | ||
| Composition | No.*AWG | 19/28AWG | |
| No.* mm | 19/0.30mm | ||
| Diameter | 1.51mm | ||
| Insulation | Material | PVC (Polyvinyl chloride) | |
| Thickness | 0.76mm | ||
| Outer Diameter (mm) |
3.03±0.1mm | ||
| Color | Optional | ||
| Package | 305m/roll | ||
| Estimate weight | 20.34km/kg | ||
| Rated current | 12.08A | ||
| Max conductor resistance DC 20℃ | 13Ω/km | ||
