SYM16878/4-2-24/7

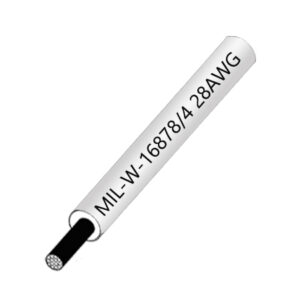

M16878/4 E 600V 200℃ PTFE High Temperature Wire
Description
Description
| Shoayer Part Number | SYM16878/4-2-24/7 | ||
| Rated Voltage | 600V | ||
| Rated Temperature | ﹣55℃～﹢200℃ | ||
| Conductor | Material | Silver plated copper | |
| AWG | 24AWG | ||
| Composition | No.*AWG | 7/32AWG | |
| No.* mm | 7/0.20mm | ||
| Diameter | 0.61mm | ||
| Insulation | Material | PTFE (Poly tetra fluoro ethylene ) | |
| Thickness | 0.25mm | ||
| Outer Diameter (mm) |
1.11±0.05mm | ||
| Color | Optional | ||
| Package | 610m/roll | ||
| Estimate weight | 3.55km/kg | ||
| Rated current | 1.98A | ||
| Max conductor resistance DC 20℃ | 81.89Ω/km | ||
