SYM22759/16-1-6/133

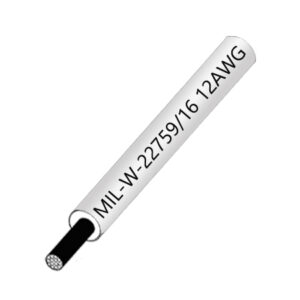

MIL-W-22759/16 600V 150℃ ETFE High Temperature Wire
Description
Description
| Shoayer Part Number | SYM22759/16-1-6/133 | ||
| Rated Voltage | 600V | ||
| Rated Temperature | 150℃ | ||
| Conductor | Material | Tinner plated copper | |
| AWG | 6AWG | ||
| Composition | No.*AWG | 133/27AWG | |
| No.* mm | 133/0.36mm | ||
| Diameter | Min. | 0.198mm | |
| Max. | 0.212mm | ||
| Insulation | Material | ETFE (ethylene-tetrafluoroethylene) | |
| Thickness | 0.254mm | ||
| Outer Diameter (mm) |
0.25±0.003mm | ||
| Color | Optional | ||
| Estimate weight | 99.9km/kg | ||
| Max conductor resistance DC 20℃ | 0.445Ω/km | ||
