SYRV-0-2.5/49

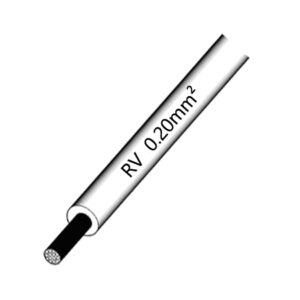

RV PVC 450V 70℃ Household wire
Description
Description
| Shoayer Part Number | SYRV-0-2.5/49 | |
| Rated Voltage | 450/750V | |
| Rated Temperature | ﹣20℃～﹢70℃ | |
| Conductor | Material | Bare copper |
| SQMM | 2.5mm² | |
| Composition (No.* mm) | 49/0.254mm | |
| Diameter | 2.0mm | |
| Insulation | Material | PVC (Polyvinyl chloride) |
| Thickness | 0.80mm | |
| Outer Diameter (mm) |
3.60±0.1mm | |
| Color | Optional | |
| Package | 100m/Roll | |
| Estimate weight | 32.50km/kg | |
| Max conductor resistance DC 20℃ | 7.41Ω/km | |
