SYRVVP-0-19×0.3/16

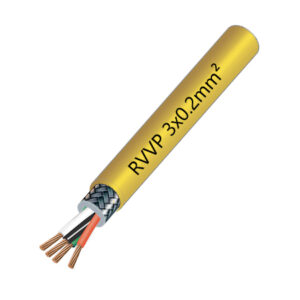

RVVP 300V Multi-core PVC Shield Cable
Description
Description
| Shoayer Part Number | SYRVVP-0-19×0.3/16 | ||
| Rated Voltage | 300V | ||
| Rated Temperature | ﹣45℃～﹢70℃ | ||
| Conductor | Material | Bare copper | |
| SQMM | 19×0.3mm² | ||
| Composition (No.* mm) | 16/0.15mm | ||
| Insulation | Material | PVC (Polyvinyl chloride) | |
| Thickness | 0.50mm | ||
| Diameter | 1.75mm | ||
| Shield | Material | Tinner plated copper | |
| Size | 16/8/0.09 | ||
| Jacket | Material | PVC (Polyvinyl chloride) | |
| Thickness | 0.80mm | ||
| Outer Diameter (mm) | 11.60±0.1mm | ||
| Color | Optional | ||
| Package | 100m/roll | ||
| Max conductor resistance DC 20℃ | 63.69Ω/km | ||
