SYBS3G210/NA-3-26/19

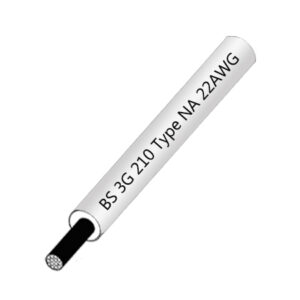

300V 260℃ BS 3G 210 Type NA PTFE wire

Category: TYPE NA

Description

Shoayer Part Number		SYBS3G210/NA-3-26/19
Rated Voltage		300V
Rated Temperature		﹣65℃～﹢260℃
Conductor	Material	Nickel plated copper
	AWG	26AWG
	Composition (No.* mm)	19/0.10mm
	Diameter	0.50mm
Insulation		PTFE (Poly tetra fluoro ethylene )
Outer Diameter (mm)	Min.	0.70±0.05mm
	Max.	0.85±0.05mm
Color		Optional
Max conductor resistance DC 20℃		139Ω/km
