SY10086-1-1/133

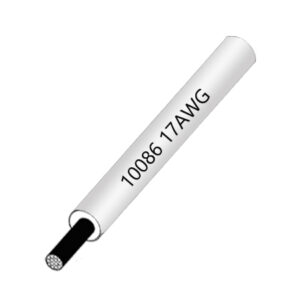

10086 600V 200℃ ETFE high temperature wire

Category: 10086

Description

Shoayer Part Number		SY10086-1-1.0/133
Rated Voltage		600V
Rated Temperature		﹣100℃～﹢200℃
Conductor	Material	Tinner plated copper
	AWG	1AWG
	Composition (No.* mm)	133/0.63mm
	Diameter	9.75mm
Insulation	Material	ETFE (Ethyl tetra fluoro ethylene)
	Thickness	0.89mm
Outer Diameter (mm)		11.50±1mm
Color		Optional
Package		50m/coil
Estimate weight		512km/kg
Rated Current		164A
Max. Conductor Resiatence at DC20℃		0.44Ω/km
