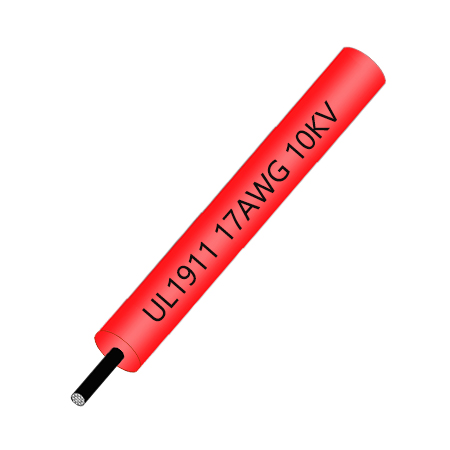

SY1911-3-17/19-10KV
1911 10KV 250℃ High Voltage Wire
Description
Description
| Shoayer Part Number | SY1911-3-17/19-10KV | ||
| Rated Voltage | 10KV | ||
| Rated Temperature | ﹣60℃～﹢250℃ | ||
| Conductor | Material | Nickel plated copper | |
| AWG | 17AWG | ||
| Composition(No.* mm) | 19/0.26mm | ||
| Diameter | 1.30mm | ||
| Insulation | Material | PFA (Perfluoroalkoxy) | |
| Thickness | 0.60mm | ||
| Outer Diameter (mm) |
2.50±0.1mm | ||
| Color | Optional | ||
| Package | 305m/roll | ||
| Estimate weight | 18km/kg | ||
| Max conductor resistance DC 20℃ | 20Ω/km | ||
