SY3069-0-26/7

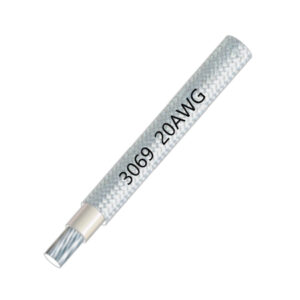

3069 600V 150℃ Silicone Fiberglass Wire
Description
Description
| Shoayer Part Number | SY3069-0-26/7 | ||
| Rated Voltage | 600V | ||
| Rated Temperature | ﹣60℃～﹢150℃ | ||
| Conductor | Material | Bare copper | |
| AWG | 26AWG | ||
| Composition | No.* AWG | 7/34AWG | |
| No.* mm | 7/0.16mm | ||
| Diameter | 0.48mm | ||
| Insulation | Material | Silicone rubber | |
| Thickness | 0.78mm | ||
| Braided | Material | Fiberglass + silicon resin | |
| Thickness | 0.15mm | ||
| Outer Diameter(mm) | 2.34±0.1mm | ||
| Color | Optional | ||
| Package | 610m/roll | ||
| Estimate weight | 6.6km/kg | ||
| Max conductor resistance DC 20℃ | 150Ω/km | ||
