SY3239-1-12/65-30KV

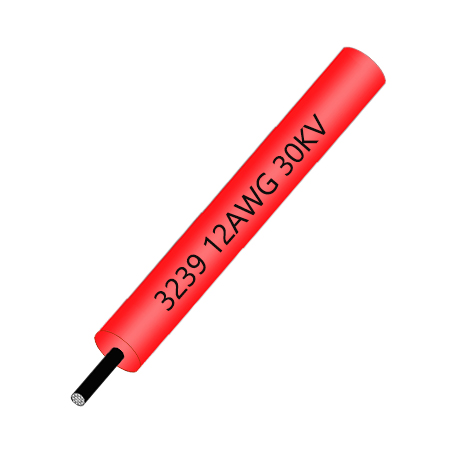

3239 Silicone High Voltage 200℃ High Temperature Wire
Description
Description
| Shoayer Part Number | SY3239-1-12/65-30KV | ||
| Rated Voltage | 30KV | ||
| Rated Temperature | ﹣60℃～﹢200℃ | ||
| Conductor | Material | Tinner plated copper | |
| AWG | 12AWG | ||
| Composition | No.*AWG | 65/30AWG | |
| No.* mm | 65/0.254mm | ||
| Diameter | 2.33mm | ||
| Insulation | Material | Silicone rubber | |
| Thickness | 2.05mm | ||
| Outer Diameter (mm) |
6.43±0.1mm | ||
| Color | Optional | ||
| Package | 305m/roll | ||
| Estimate weight | 67km/kg | ||
| Max conductor resistance DC 20℃ | 5.4Ω/km | ||
