SY3239-1-14/41-20KV

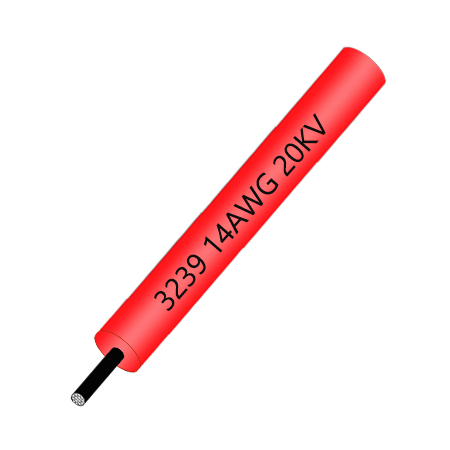

3239 Silicone High Voltage 200℃ High Temperature Wire
Description
Description
| Shoayer Part Number | SY3239-1-14/41-20KV | ||
| Rated Voltage | 20KV | ||
| Rated Temperature | ﹣60℃～﹢200℃ | ||
| Conductor | Material | Tinner plated copper | |
| AWG | 14AWG | ||
| Composition | No.*AWG | 41/30AWG | |
| No.* mm | 41/0.254mm | ||
| Diameter | 1.85mm | ||
| Insulation | Material | Silicone rubber | |
| Thickness | 1.50mm | ||
| Outer Diameter (mm) |
4.85±0.1mm | ||
| Color | Optional | ||
| Package | 305m/roll | ||
| Estimate weight | 40km/kg | ||
| Max conductor resistance DC 20℃ | 9.8Ω/km | ||
