SY3239-1-22/17-6KV

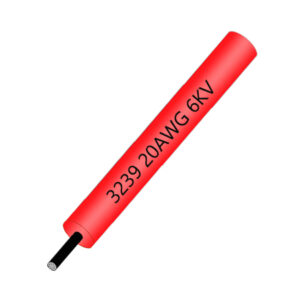

3239 Silicone High Voltage 200℃ High Temperature Wire
Description
Description
| Shoayer Part Number | SY3239-1-22/17-6KV | ||
| Rated Voltage | 6KV | ||
| Rated Temperature | ﹣60℃～﹢200℃ | ||
| Conductor | Material | Tinner plated copper | |
| AWG | 22AWG | ||
| Composition | No.*AWG | 17/34AWG | |
| No.* mm | 17/0.16mm | ||
| Diameter | 0.76mm | ||
| Insulation | Material | Silicone rubber | |
| Thickness | 0.70mm | ||
| Outer Diameter (mm) |
2.16±0.1mm | ||
| Color | Optional | ||
| Package | 610m/roll | ||
| Estimate weight | 4.7km/kg | ||
| Max conductor resistance DC 20℃ | 62.5Ω/km | ||
