SY3530-1-10/37

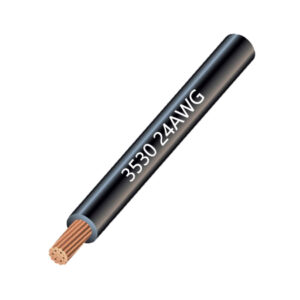

3530 Silicone 600V 200℃ High Temperature Wire
Description
Description
| Shoayer Part Number | SY3530-1-10/37 | ||
| Rated Voltage | 300V | ||
| Rated Temperature | ﹣60℃～﹢200℃ | ||
| Conductor | Material | Tinner plated copper | |
| AWG | 10AWG | ||
| Composition(No.* mm) | 37/0.43mm | ||
| Diameter | 3.02mm | ||
| Insulation | Material | Silicone rubber | |
| Thickness | 0.76mm | ||
| Outer Diameter (mm) |
4.54±0.1mm | ||
| Color | Optional | ||
| Package | 305m/roll | ||
| Estimate weight | 67km/kg | ||
| Rated current | 47.3A | ||
| Max conductor resistance DC 20℃ | 3.55Ω/km | ||
