SYAFPF-1-5×0.75/19

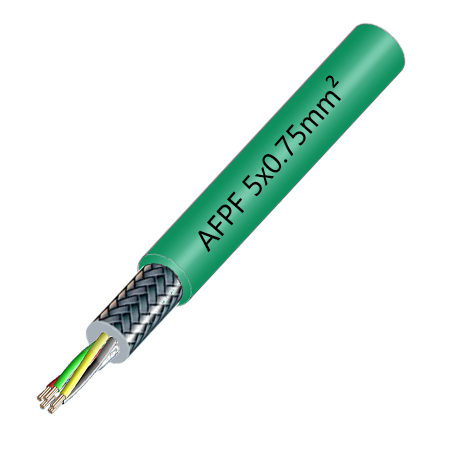

AFPF 300V 200℃ Multi-core Teflon Shielded Cable
Description
Description
| Shoayer Part Number | SYAFPF-1-5×0.75/19 | ||
| Rated Voltage | 300/500V | ||
| Rated Temperature | ﹣60℃～﹢200℃ | ||
| Conductor | Material | Tinner plated copper | |
| SQMM | 5×0.75mm² | ||
| Composition (No.* mm) | 19/0.23mm | ||
| Diameter | 1.20mm | ||
| Insulation | Material | FEP(Fluorinated ethylene-propylene) | |
| Thickness | 0.25mm | ||
| Diameter | 1.70mm | ||
| Shielded | Tinner plated copper | ||
| Jacket | Material | FEP(Fluorinated ethylene-propylene) | |
| Thickness | 0.40mm | ||
| Average Outer Diameter (mm) | 6.00±0.2mm | ||
| Color | Optional | ||
| Package | 200m/roll | ||
| Max conductor resistance DC 20℃ | 22.7Ω/km | ||
