SYAGCR-1-11/750

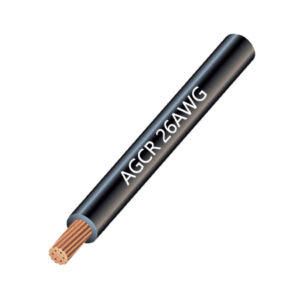

AGCR 300V 200℃ Super Flexible Silicone Wire
Description
Description
| Shoayer Part Number | SYAGCR-1-11/750 | ||
| Rated Voltage | 300/500V | ||
| Rated Temperature | ﹣60℃～﹢200℃ | ||
| Conductor | Material | Tinner plated copper | |
| AWG | 11AWG | ||
| Composition | No.*AWG | 750/40AWG | |
| No.* mm | 750/0.08mm | ||
| Diameter | 2.53mm | ||
| Insulation | Material | Silicone rubber | |
| Thickness | 1.23mm | ||
| Outer Diameter (mm) |
4.99±0.1mm | ||
| Color | Optional | ||
| Package | 305m/roll | ||
| Estimate weight | 58km/kg | ||
| Rated current | 56.4A | ||
| Max conductor resistance DC 20℃ | 4.6Ω/km | ||
