SYAGRP-1-16.0/133

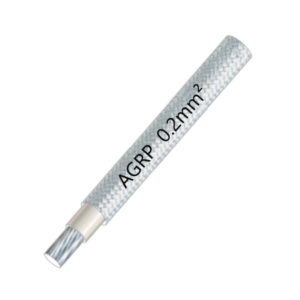

AGRP 300V 180℃ Silicone Fiberglass Wire
Description
Description
| Shoayer Part Number | SYAGRP-1-16.0/133 | |
| Rated Voltage | 300/500V | |
| Rated Temperature | ﹣60℃～﹢180℃ | |
| Conductor | Material | Tinner plated copper |
| SQMM | 16mm² | |
| Composition(No.* mm) | 133/0.39mm | |
| Diameter | 5.80mm | |
| Insulation | Material | Silicone rubber |
| Thickness | 1.20mm | |
| Braided | Material | Fiberglass + silicon resin |
| Thickness | 0.25mm | |
| Outer Diameter (mm) |
8.90±0.1mm | |
| Color | Optional | |
| Package | 100m/roll | |
| Estimate weight | 192km/kg | |
| Max conductor resistance DC 20℃ | 1.24Ω/km | |
