SYAGRP-1-8.0/63

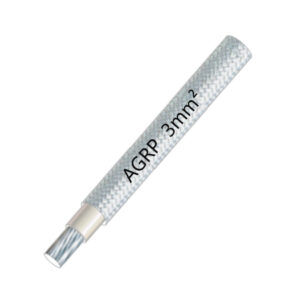

AGRP 300V 180℃ Silicone Fiberglass Wire
Description
Description
| Shoayer Part Number | SYAGRP-1-8.0/63 | |
| Rated Voltage | 300/500V | |
| Rated Temperature | ﹣60℃～﹢180℃ | |
| Conductor | Material | Tinner plated copper |
| SQMM | 8.0mm² | |
| Composition(No.* mm) | 63/0.39mm | |
| Diameter | 4.20mm | |
| Insulation | Material | Silicone rubber |
| Thickness | 0.80mm | |
| Braided | Material | Fiberglass + silicon resin |
| Thickness | 0.20mm | |
| Outer Diameter (mm) |
6.40±0.1mm | |
| Color | Optional | |
| Package | 100m/roll | |
| Estimate weight | 91km/kg | |
| Max conductor resistance DC 20℃ | 2.55Ω/km | |
