SYFF46-2-2.5/19

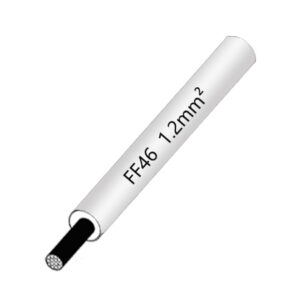

FF46-2 600V 200℃ Silver Copper Teflon Wire

Category: FF46

Description

Shoayer Part Number		SYFF46-2-2.5/19
Rated Voltage		600V
Rated Temperature		﹣80℃～﹢200℃
Conductor	Material	Silver plated copper
	SQMM	2.5mm²
	Composition (No.* mm)	19/0.41mm
	Diameter	2.06mm
Insulation	Material	FEP (Fluorinated ethylene propylene)
	Thickness	0.40mm
Outer Diameter (mm)		2.86±0.1mm
Color		Optional
Package		610m/Roll
Estimate weight		29.93km/kg
Max conductor resistance DC 20℃		7.18Ω/km
