SYM16878/2-1-20/19

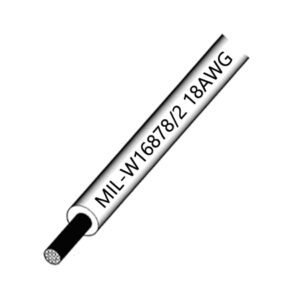

Military M16878/2 PVC 1000V 105℃ Wire
Description
Description
| Shoayer Part Number | SYM16878/2-1-20/19 | ||
| Rated Voltage | 1000V | ||
| Rated Temperature | ﹣55℃～﹢105℃ | ||
| Conductor | Material | Tinner plated copper | |
| AWG | 20AWG | ||
| Composition | No.*AWG | 19/32AWG | |
| No.* mm | 19/0.18mm | ||
| Diameter | 0.91mm | ||
| Insulation | Material | PVC (Polyvinyl chloride) | |
| Thickness | 0.38mm | ||
| Outer Diameter (mm) |
1.67±0.1mm | ||
| Color | Optional | ||
| Package | 610m/roll | ||
| Estimate weight | 6.70km/kg | ||
| Rated current | 4.35A | ||
| Max conductor resistance DC 20℃ | 37Ω/km | ||
