The testing process for wires and cables typically involves several steps.
Here is a general outline of the process:
1. Visual Inspection: The wires are visually inspected for any physical damage, such as cuts, abrasions, or deformities.
2. Dimensional Measurement: The dimensions of the wires, including their diameter or thickness, are measured to ensure they meet the specified requirements.

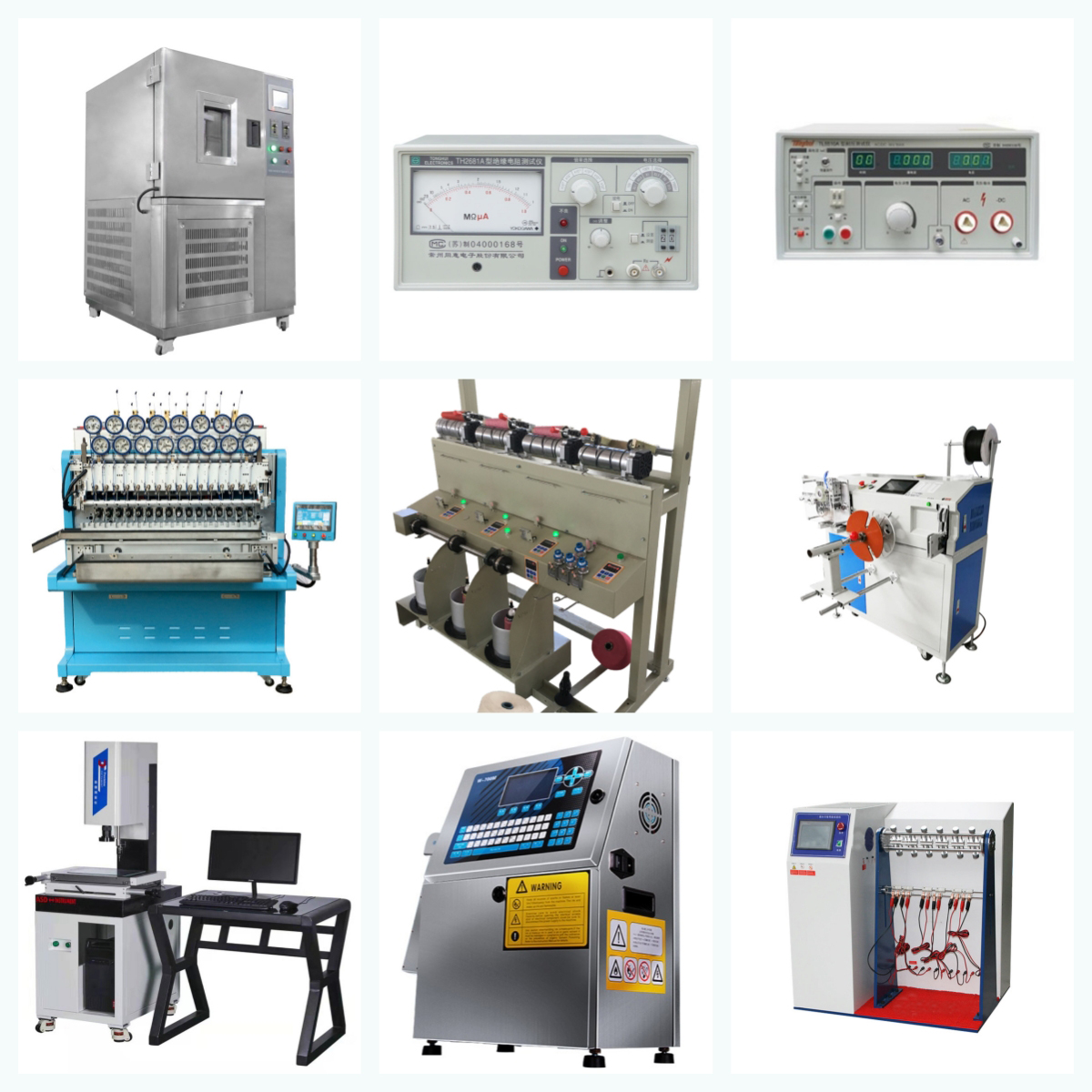

3. Electrical Testing: Different electrical tests are performed to verify the quality and performance of the wires. These tests may include:
– Insulation Resistance Test: Measures the resistance between the conductor and the insulation to ensure it is within acceptable limits.
– Dielectric Strength Test: Checks the ability of the insulation to withstand high electric voltages without breaking down.
– Conductor Resistance Test: Measures the resistance of the conductor to ensure it meets the specified requirements.
– Voltage withstand Test: Applies high voltage to the cable to assess its ability to withstand electrical stress without failure.
4. Mechanical Testing: Various mechanical tests are conducted to evaluate the strength and durability of the wires. These tests may include:
– Tensile Strength Test: Measures the maximum force the wire can withstand before breaking.
– Flexibility Test: Evaluates the wire’s ability to bend or twist without any damage.
– Abrasion Test: Assesses the wire’s resistance to wear and tear caused by repeated movement or rubbing.
– Impact Test: Determines the wire’s ability to withstand sudden impacts without damage.
5. Marking and Packaging: Once the wires pass all the required tests, they are marked with relevant information like manufacturer details, product specifications, and certifications. They are then packaged for distribution.
It’s important to note that the specific testing procedures may vary depending on the type of wire or cable being manufactured and the industry standards applicable in different regions or countries.
